TIC3612SA-F2-4F3AC-I1

General
Power	DC12V(±25%), PoE(IEEE802.3af)	DC12V(±25%), PoE(IEEE802.3af)
Power Consumption	Max 12W	Max 12W
Power Interface	Ø5.5 mm coaxial power plug	Ø5.5 mm coaxial power plug
Dimensions	Φ129 x 114 mm(Φ5.08″ x 4.49″)(Φ x H)	Φ129 x 114 mm(Φ5.08″ x 4.49″)(Φ x H)
Weight	0.72kg(1.6lb)	0.72kg(1.6lb)
Working Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV	6 KV
Reset Button	Support	Support
RTC	Support	Support
Web Client Language	1 Language: English	1 Language: English

Category Thermal Camera Tag Camera

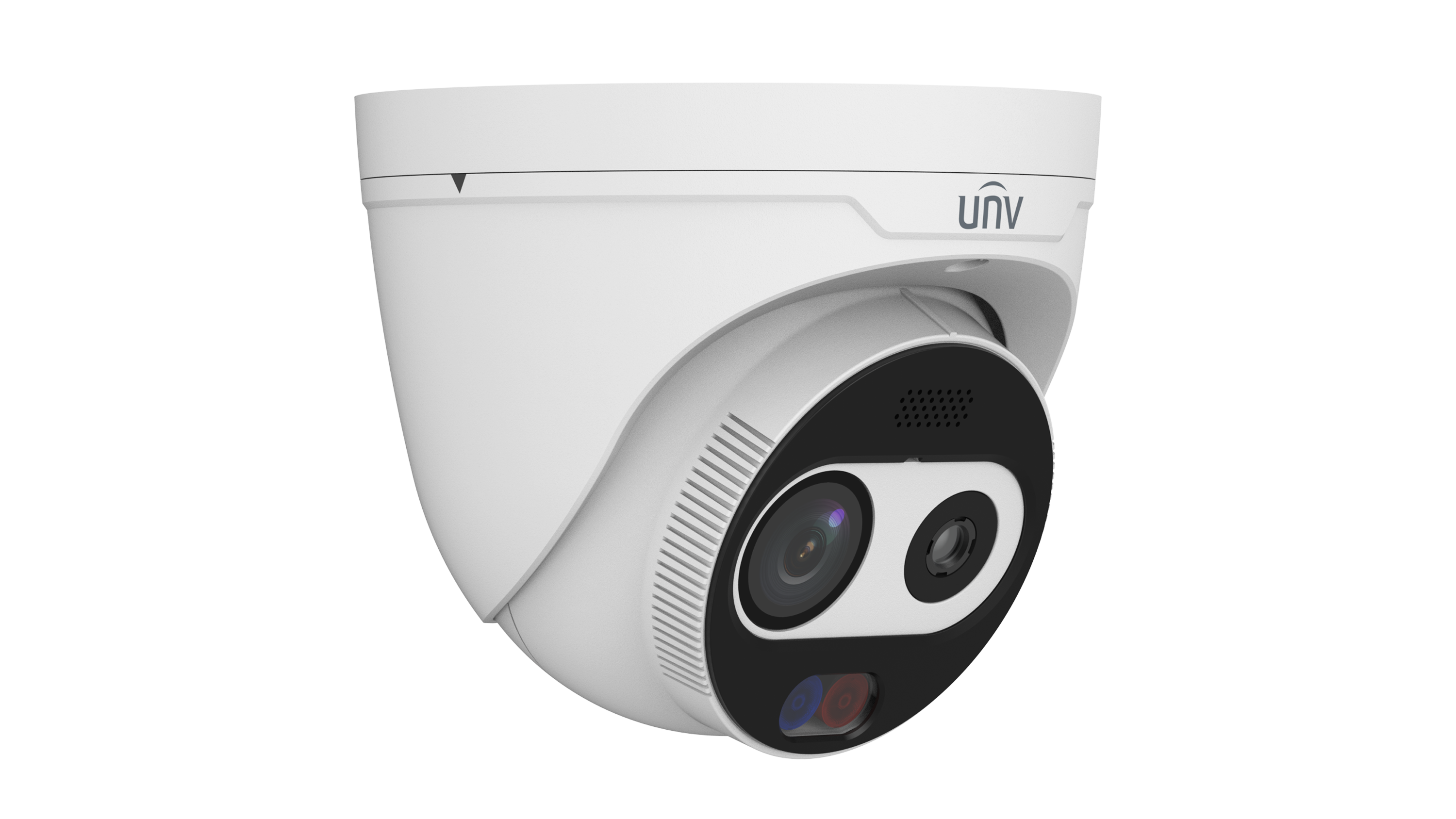

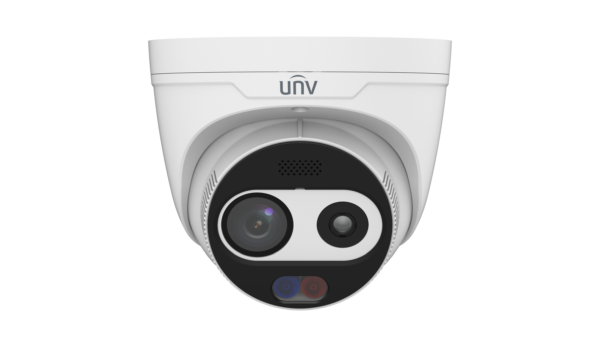

Thermal & Optical Dual-spectrum Turret Network Camera

• Thermal & Optical dual spectrum image, dual video with single IP address, adaptable to more various scenes
• 1/2.8″ target surface, high sensitivity sensor, satisfy the need of starlight monitoring
• Thermal module support reliable fire detection, smoking detection and fire shield area
• Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm
• Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
• Optical module supports smog recognition, which can help with fire alarm reconfirm
• Support picture in picture mode, real time contrast live, more convenient and clear
• Support audio and light alarm, with red and blue warning lights built in
• Ultra 265, H.265, H.264, MJPEG
• Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module
• DC12V±25% or PoE power supply
• Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 G
