UAC-T115-F28(40)

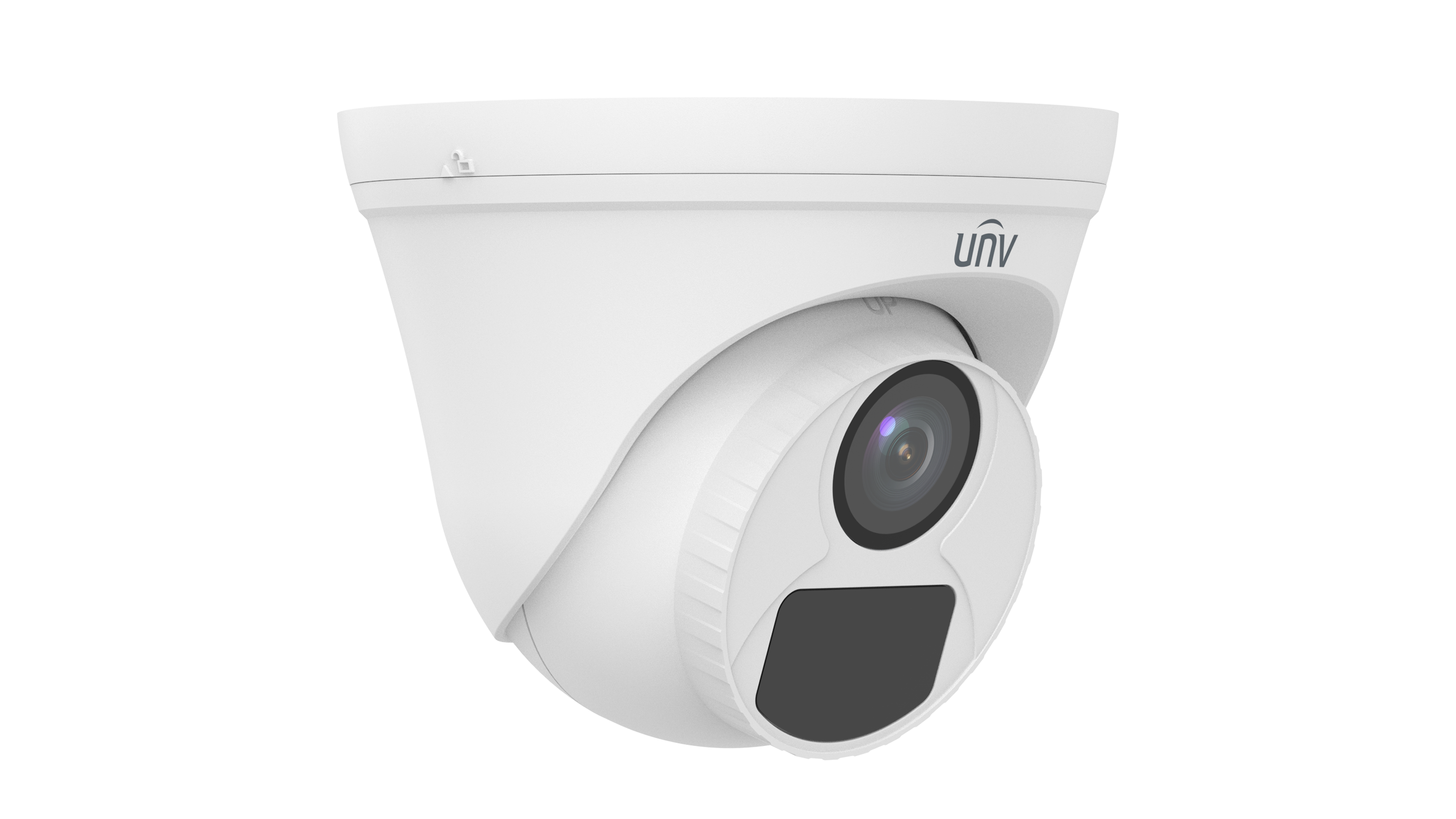

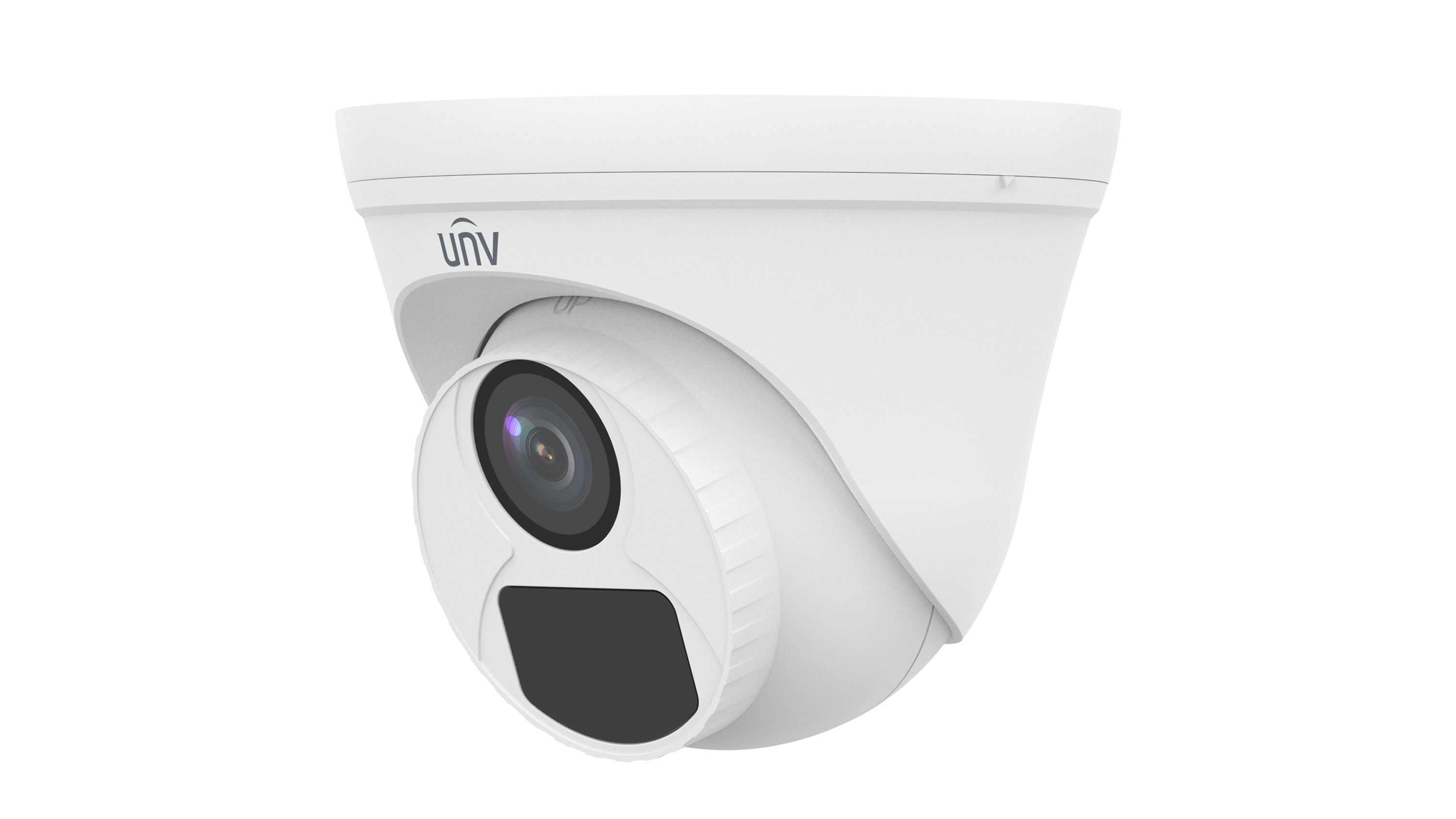

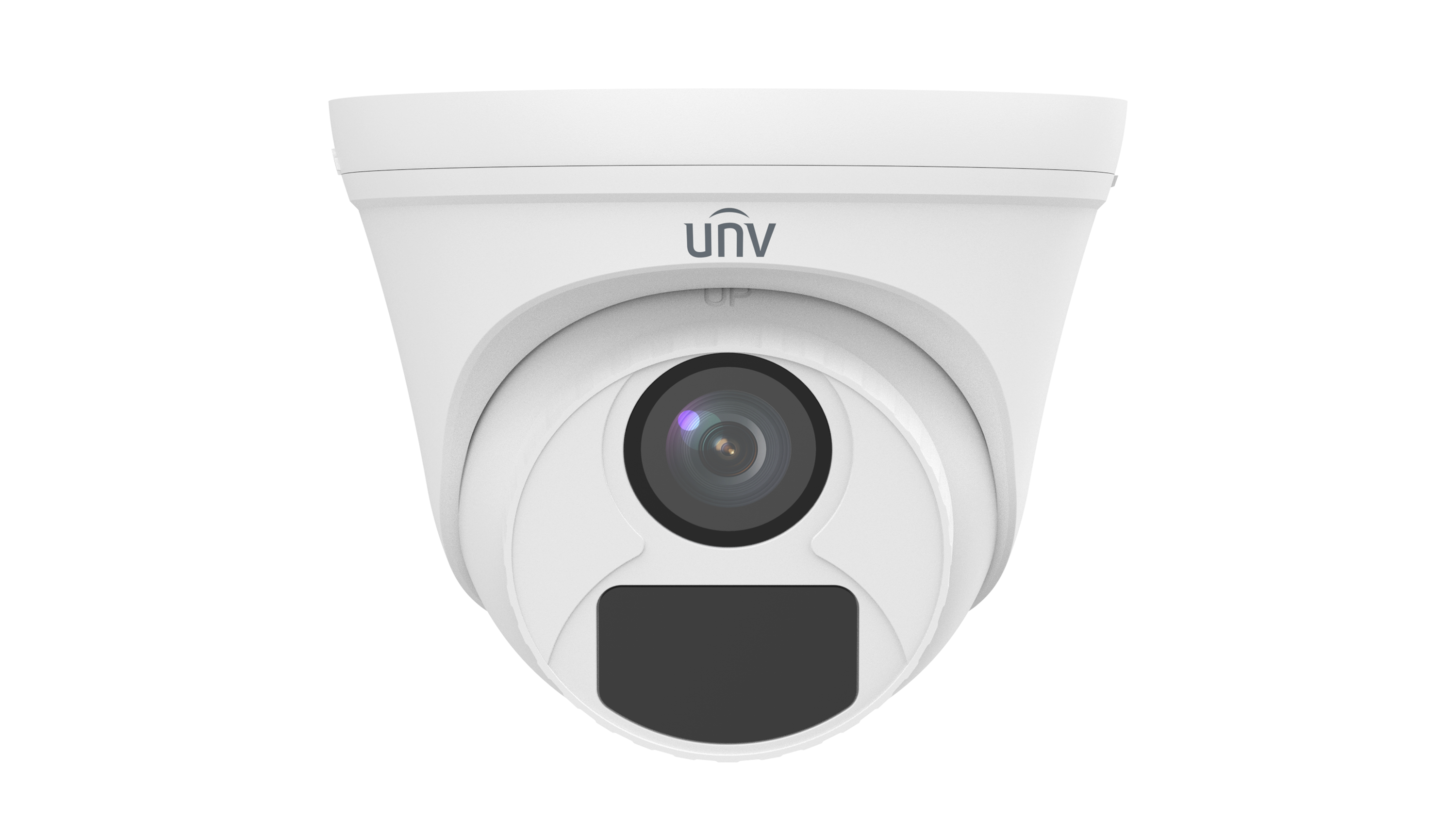

The UAC-T115-F28(40) is a 5MP fixed IR turret analog camera from Uniview’s Dolphin Series, designed for dependable high-definition surveillance. It features a 1/2.7″ CMOS sensor that delivers 5MP footage at 25/30 fps and supports analog formats like TVI, AHD, CVI, and CVBS. The unit offers either a 2.8 mm lens with roughly 102° field of view or a 4.0 mm lens with about 83°, and includes IR illumination reaching up to 20 meters. It supports 180° flips horizontally and vertically, includes an OSD menu, and runs on DC 12V with a power draw up to 2.3 W.
